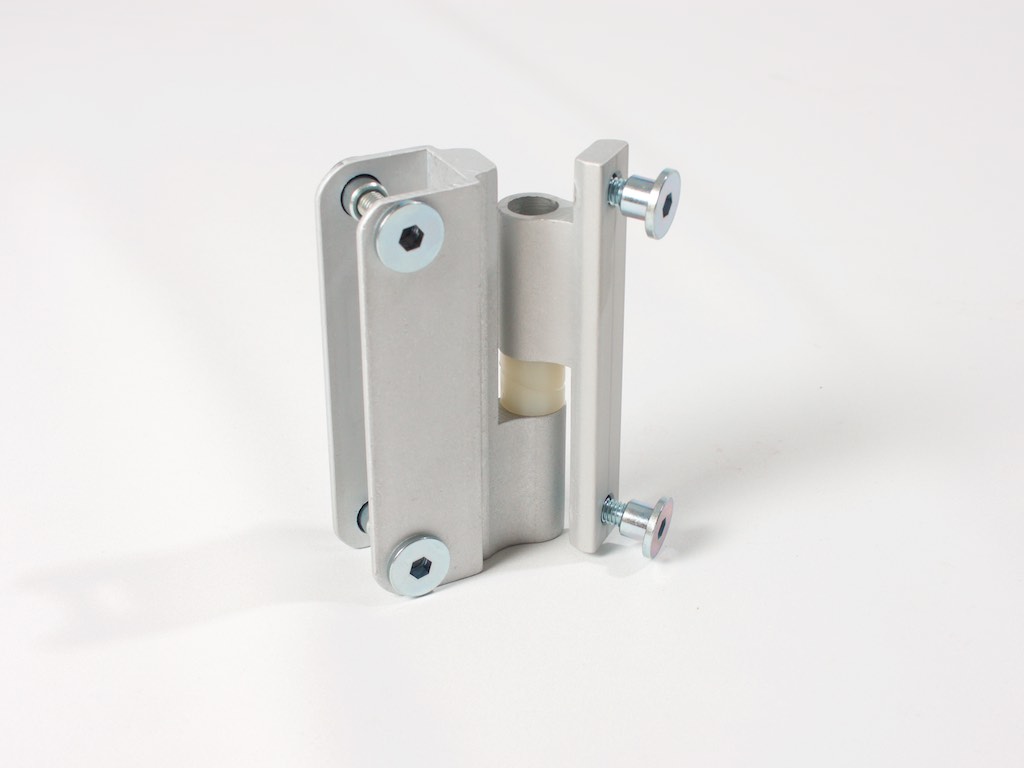

CC18 Hidden Hinge

The CC18 Hidden Hinge is for 17-19mm laminate only.

The hinge wraps around the door and is double bolted through with "T" nuts, the fascia can be either double bolted through with "T" nuts or lozenge plate. It can also be face fixed with No.10 woodscrews but in this instance we would recommend three hinges per door, and careful consideration as to where the cubicle is situated.

The hinge can be set to fall open, fall closed, or other positions in between by simple adjustment of the Nylon risers.

These like all of our hinges can be adjusted to lift off hinges whereby in an emergency you remove one easily accessible screw and the door can be easily and quickly lifted off.

These hinges are Anti finger trap.

FOR A FULL PRICE LIST AND SPECIAL OFFERS, PLEASE GET IN TOUCH.
